Visual fault locator 5mW VFL TC-321 Pen-type visual-fault
TC-321 VFL is specially designed for field personnel who need an efficient and economical tool for fiber tracing, fiber routing and continuity checking in an optical network during and after installation. It includes:
Finding the breakpoint, poor connections, bending or cracking in fiber optic cables;Finding the faults of OTDR.
Specifications
Type |
Visual fault locator or Pen-type Visual Fault Finder |
Central Wavelength |
650nm+-10nm (635nm can be required on request) |
Emitter Type |
FP-LD |
Output Power |
Optional choice for 1mw, 5mw,10mw 20mw 30mw |

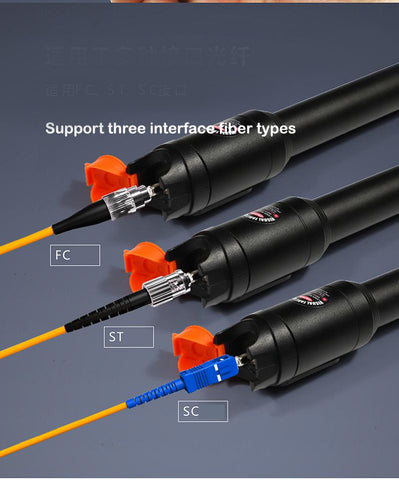

Optical Connector |
2.5mm universal connector |
Operating Model |
Both CW and Pulse available |
Pulse Frequency |
2~3Hz |
Power Supply |
2 AAalkaline batteries |
Battery Operating Time |
60 hours |
Operating Temperature |
-10~+45 (oC) |
Storage Temperature |
-40~+70 (oC) |
Dimension (mm) |
15X180 |
Weight |
120g(Without battery) |
Remark: Colors can be customized on request when meets certain qty!

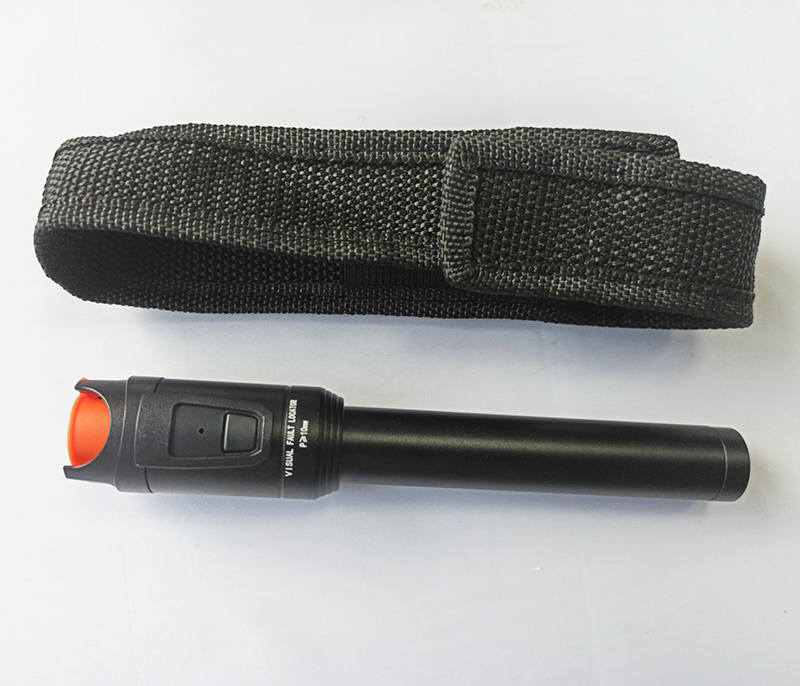

Visual fault locator Standard Packages
MODEL |
INCLUDES |
TC-321 |
Main Unit (Original color), User Manual, Cotton swabs and Soft Carrying case |
