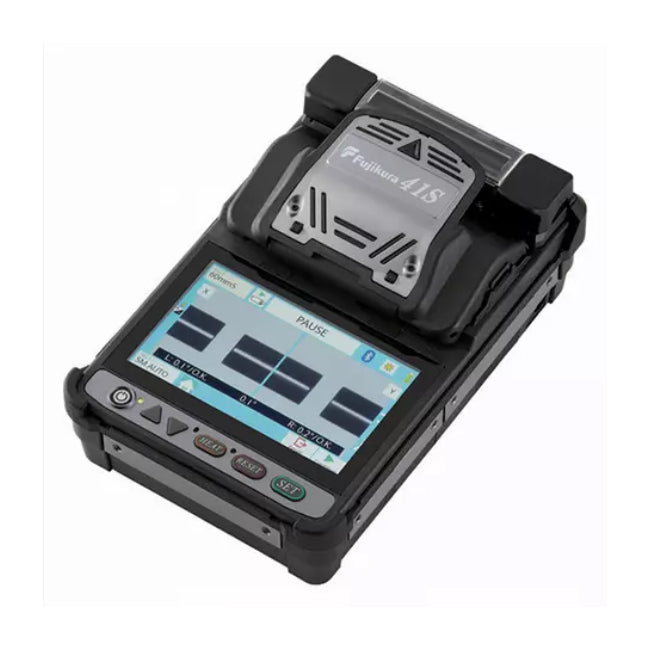

Fujikura 41S is a V-groove cladding alignment fusion splicer for SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655) single optical fibers. Typical splice time: 6-9 seconds, typical tube heating time: 16-24 seconds. Bluetooth® 4.1LE wireless connectivity improves efficiency and reduces maintenance time.
Fujikura 41S is able to estimate the splice loss as accurately as possible. Also, the device is equipped with a touch panel with easy operation, and comes in a multifunctional case with integrated workstation.
- Active V-groove splicer.
- Typical splice time: 6-9 seconds.
- Typical tube heating time: 16-24 seconds.
- Equipped with CT-08 cleaver.
- Easy protector positioning.
- Bluetooth capability connection.
- Core loss estimation function.
- Touch panel with easy operation.

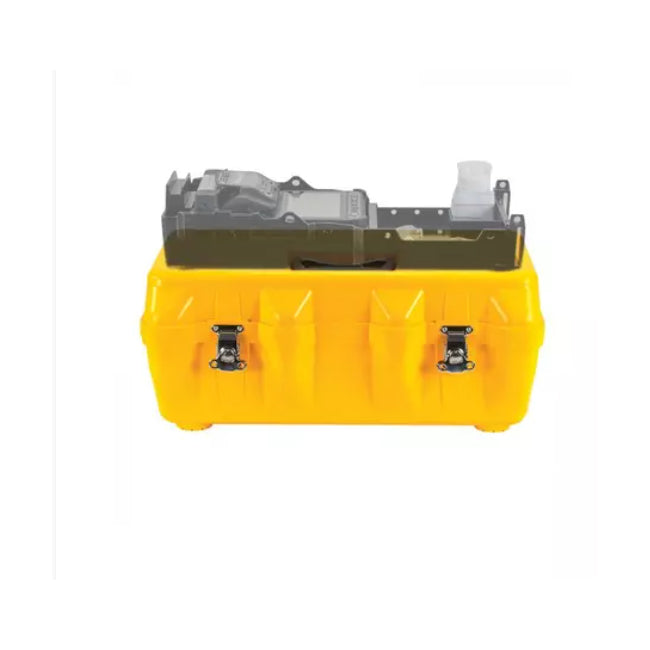

- Multi-functional carrying case with integrated work station.
|Applicable fiber||Single / SMF(G.652/657), MMF(G.651), DSF(G.653), NZDSF(G.655)|
|Cladding dia. / Sheath dia.||125 μm / up to 3 mm with sheathclamp|
|Cleave length||5 mm to 16 mm with sheathclamp|
|Splice mode / heating mode||total 100 splice modes / 30 heating modes|
|Typical splice loss||0.03 dB (SM), 0.01 dB(MM), 0.05 dB(DS) and 0.05 dB(NZDS)|
|Return loss||>>60 dB|
|Typical splice time||6 sec SM FAST, 9 sec SM AUTO|
|Typical tube heating time||24 sec: FP-03, coating dia. 250μm
25 sec: FP-03, coating dia. 900μm
19 sec: Slim 60 mm, coating dia. 250μm
16 sec: Slim 40 mm, coating dia. 250μm
|Splice result storage||Last 10,000 splices|
|Viewing methods / magnification||2 axis 2CMOS camera with 5.0” color LCD; 132X magnification, 200X magnification after splicing|
|Applicable protection sleeve||60 mm, 40 mm and Fujikura micro sleeves|
|Battery life||200 cycles of splicing and heating|
|Electrode life||5000 splices|
|Wireless connectivity||Bluetooth ®4.1LE|
|Dimensions||131 × 201 × 79 mm|
|Weight||1300 g (with battery)|
|Operating condition||altitude: 0 to 5,000 m above sea level, wind: 15 m/sec
temperature: -10 to 50°C, humidity: 0 to 95% RH, non-dew
|Resistance feature||shock resistance: 76 cm (30 inch) bottom surface drop
dust resistance: exposure to dust (0.1 to 500 μm dia. Alumina Silicate)
rain resistance : H=10 mm/hr for 10 min
|Other features||PC software upgrade / data management|
|Terminals||USB 2.0 (Mini-B Type) connector for PC communication, USB 2.0 (host)|
- Fusion Splicer Fujikura 41S (with BTR-11, ELCT2-16B and CLAMP-S31A) — 1 pc.
- Cleaver CT-08 — 1 pc.
- Set plate SP-31 — 1 set
- AC adapter ADC-19A — 1 pc.
- AC power cord (ACC-XX, XX=08(JP),09(US),10(UK),11(EU),12(AU)) — 1 pc.
- Carrying case CC-36 — 1 pc.
- Spare electrodes ELCT2-16B — 1 set
- Single fiber stripper SS03 — 1 pc.
- Instruction manual M-41 — 1 pc.
- Quick reference guide Q-41S-E — 1 pc.
- Alcohol pot AP-02 — 1 pc.
