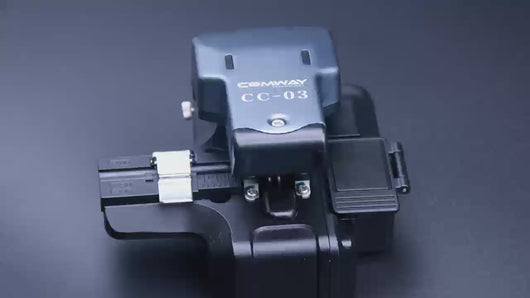

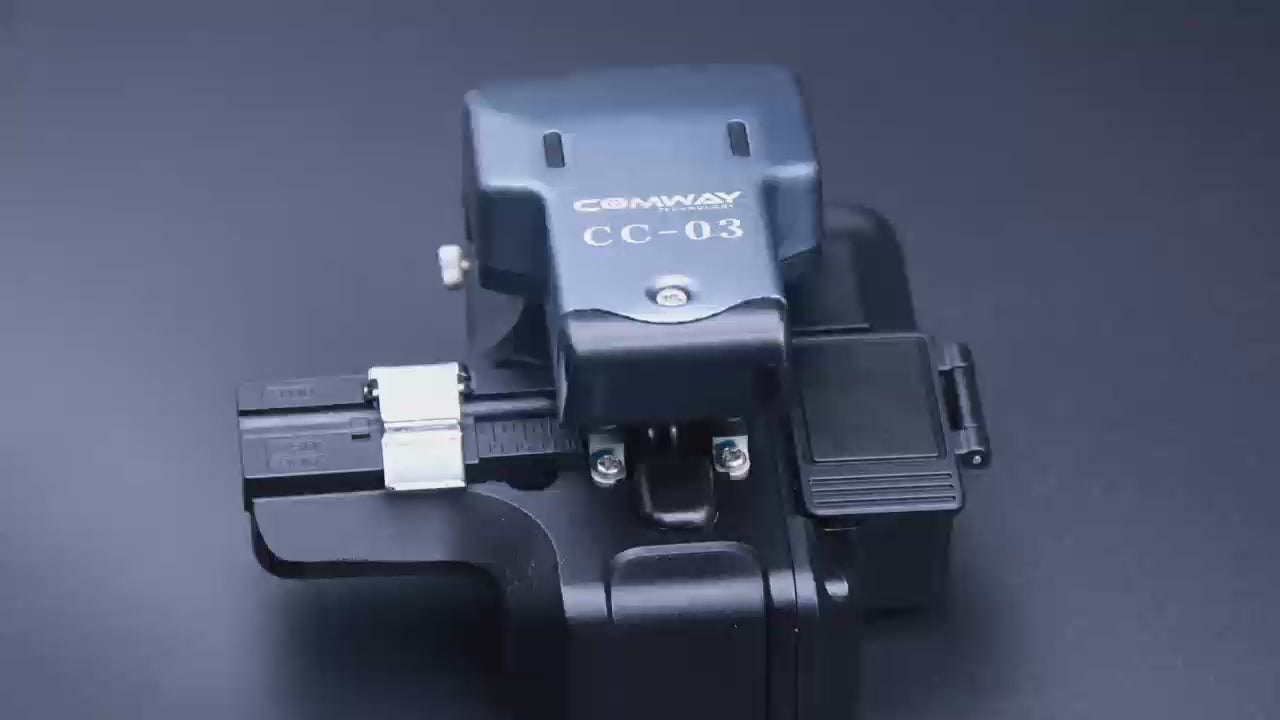

COMWAY CC-03 — One-Step Automatic Fiber Cleaver for Precision Field Splicing
The COMWAY CC-03 is a compact, one-step automatic fiber cleaver designed for professional fiber technicians who demand precision in a lightweight, palm-sized package. With automatic blade rotation ensuring a fresh cutting edge for every cleave, a 50,000-cleave blade life, and a ≤0.5° cleave angle, the CC-03 delivers consistent, low-loss fiber preparation for fusion splicing and field termination — all at an exceptional value price of $149.99.
🔑 Key Features
- One-Step Operation — Simple, single-action cleaving performed in the palm of your hand
- Automatic Blade Rotation — Ensures maximum precision from every blade position
- 50,000-Cleave Blade Life — Outstanding longevity for high-volume splicing work
- Cleave Angle ≤0.5° — Meets stringent fusion splicing requirements
- Built-in Extra-Large Fiber Scrap Collector — Safe, convenient fiber waste management
- Ultra-Compact: 85×75×45mm | 135g — Lightest in its class
- Wide Fiber Compatibility — 0.25mm, 0.9mm, 2.0mm, 3.0mm coating; 125μm bare fiber
- Cleave Length: 5–16mm (0.25mm) | 10–16mm (0.9mm)
- 1-Year Warranty
📐 Technical Specifications
- Operation: One-step automatic
- Blade Rotation: Automatic
- Blade Life: 50,000 cleaves
- Cleave Angle: ≤0.5°
- Applicable Fiber: Single-core optical fiber
- Coating Diameter: 0.25 / 0.9 / 2.0 / 3.0 / 3×2mm
- Bare Fiber Diameter: 125μm
- Cleave Length: 5–16mm (0.25mm) | 10–16mm (0.9mm)
- Dimensions: 85×75×45mm
- Weight: 135g
- Warranty: 1 Year
🏗️ Ideal Applications
Fusion splicing preparation · Field fiber termination · FTTH drop cable cleaving · Confined space fiber work · High-volume splicing operations
💡 Best Value Automatic Fiber Cleaver
Comparable in performance to Sumitomo FC-6S and FC-8R cleavers at a fraction of the price — the CC-03 is the smart choice for contractors and technicians who need professional cleaving quality without the premium price tag.
✅ FAQ
Q1: What is a one-step fiber cleaver and how does the CC-03 work?
A: A one-step cleaver completes the entire cleaving process — scoring and breaking
the fiber — in a single action. With the CC-03, you simply place the fiber and
press once; the automatic mechanism scores and cleaves the fiber cleanly in one motion.
Q2: What does automatic blade rotation mean?
A: The CC-03 automatically rotates the blade to a fresh cutting position after each
cleave, ensuring consistent precision throughout the blade's 50,000-cleave life —
no manual blade adjustment required.
Q3: What fiber types and coating sizes does the CC-03 support?
A: The CC-03 supports single-core optical fiber with coating diameters of 0.25mm,
0.9mm, 2.0mm, 3.0mm, and 3×2mm, and bare fiber diameter of 125μm — covering
virtually all standard fiber types used in FTTH and telecom applications.
Q4: How does the COMWAY CC-03 compare to Sumitomo FC-6S or FC-8R?
A: The CC-03 delivers comparable one-step automatic cleaving performance to the
Sumitomo FC-6S and FC-8R at a significantly lower price point, making it the
best-value automatic cleaver for professional technicians.
Q5: Is the CC-03 suitable for confined spaces?
A: Yes. At just 85×75×45mm and 135g, the CC-03 is specifically designed for
use in confined spaces such as fiber distribution boxes, splice closures, and
aerial splice platforms.
Q6: How do I dispose of fiber scraps safely with the CC-03?
A: The CC-03 features a built-in extra-large fiber scrap collector that safely
captures cleaved fiber ends, preventing dangerous loose fiber fragments from
contaminating the work area.
Q7: What warranty does the COMWAY CC-03 include?
A: The CC-03 comes with a 1-year manufacturer warranty.
High precision one-step fiber cleaver COMWAY CC-03 Fully Automatic,High Precision,Fiber Cutter Tool
Product Description
Features:
Small and lightweight, one-step fiber cleaver
Automatic Blade Rotation
1 to 12-Fiber Ribbon Cleaver
Ideal Cleaver for Mechanical Connectors
Compatible with All Fusion Splicers
Precision Blade Performs 48,000 Cleaves
Ideal Cleaver for High Precision Cleaving Applications in Any Environment
|
Specification
|
Details
|
|---|---|
|
Product Type
|
One-Step Fiber Cleaver (Single-Core), Automatic Blade Rotation
|
|
Brand & Model
|
Comway, CC-03
|
|
Applicable Fiber
|
Single-mode (SM) & Multi-mode (MM) single-core fiber
|
|
Fiber Diameter
|
Cladding: 125μm; Coating: 250μm-900μm (optional 2.0mm, 3.0mm, 3×2mm)
|
|
Cleave Angle
|
Typical ≤0.5° (ensures high-quality splicing)
|
|
Cleave Length
|
5-16mm (250μm coating); 10-16mm (900μm coating)
|
|
Blade Life
|
48,000 total cleaves (2,000 cleaves per blade position, automatic rotation)
|
|
Operation Mode
|
One-step press, automatic rebound, no manual blade adjustment
|
|
Special Features
|
Built-in fiber scrap collector, automatic blade rotation, ergonomic handheld design
|
|
Dimensions
|
85mm (W) × 75mm (D) × 45mm (H)
|
|
Weight
|
135g (lightweight, easy to carry)
|
|
Operating Temperature
|
-10°C ~ +50°C (suitable for field use)
|
|
Compatibility
|
Compatible with all fusion splicer models
|
|
Applications
|
FTTH deployment, fusion splicing, data center cabling, field maintenance, backbone network testing
|
