OTDR EXFO OTDR MAX-715B-M1-VPM2X otdr or ioLM

Regular price
$3,150.00
Sale price
$3,150.00
Regular price
$5,399.00
Sold out
Unit price
per
Shipping calculated at checkout.

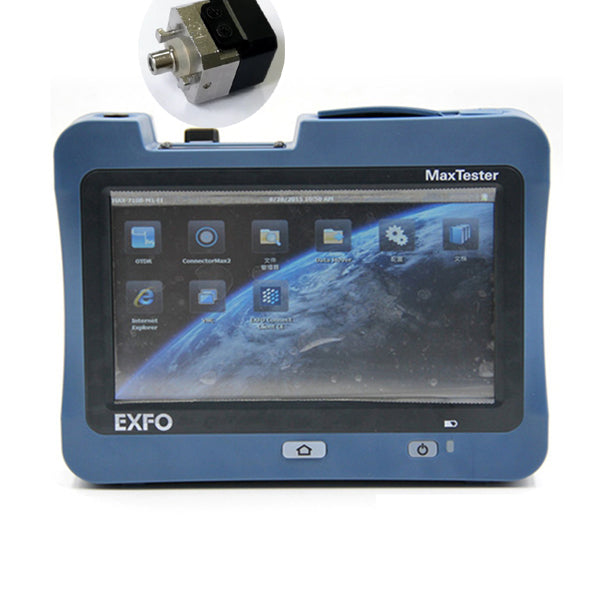

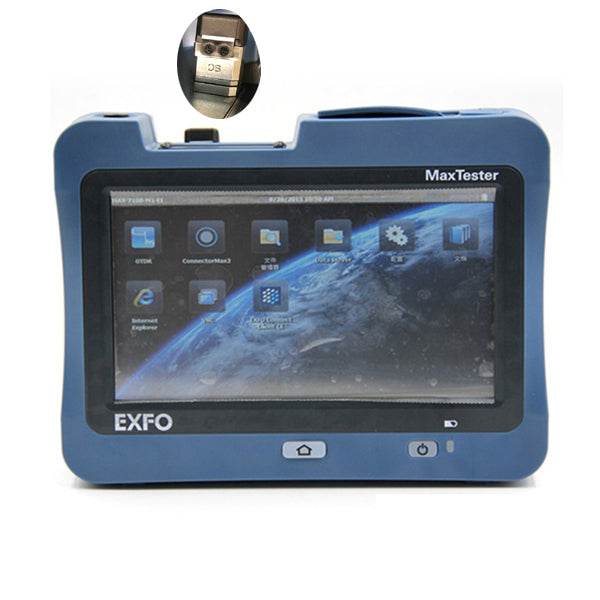

EXFO Max Tester Max-715B-M1-VPM2X-EI (UPC),  FC or SC  signle model fiber OTDR

EXFO Max Tester Max-715B-M1-VPX2X-EA (APC),  FC or SC,  signle model fiber OTDR

OTDR Wavelength:  1310/1550nm,  30/28dB.

OTDR software:  OTDR



Brand new,  with multi-language including English, Spanish, French....

with standard packaging:  main unit, built-in battery, adaptor, power cable, softbag, touch pen, calibration certificate.

Specifications:

Display

7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT

Interfaces

Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s

Storage

2 GB internal memory (20 000 OTDR traces, typical)

Batteries

Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Power supply

Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum

Wavelength (nm)

1310 ± 30/1550 ± 30

SM live port built-in filter

1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm

Dynamic range (dB)

30/28

Event dead zone (m)

1

Attenuation dead zone (m)

4

PON dead zone (m)

35

Distance range (km)

0.1 to 160

Pulse width (ns)

5 to 20 000

Linearity (dB/dB)

±0.05

Loss threshold (dB)

0.01

Loss resolution (dB)

0.001

Sampling resolution (m)

0.04 to 5

Sampling points

Up to 256 000

Distance uncertainty (m)

±(0.75 + 0.0025 % x distance + sampling resolution)

Measurement time

User-defined (maximum: 60 minutes)

Reflectance accuracy (dB)

±2

Typical real-time refresh (Hz)

3





--------------------------------------------------------------------------------------------------

We keep lots in stock, If you need more, please contact us directly!


Condition:  - Brand New .
Warranty Service :   - 12 months .
Package includes:  - standard package with accessories,  in carton.
