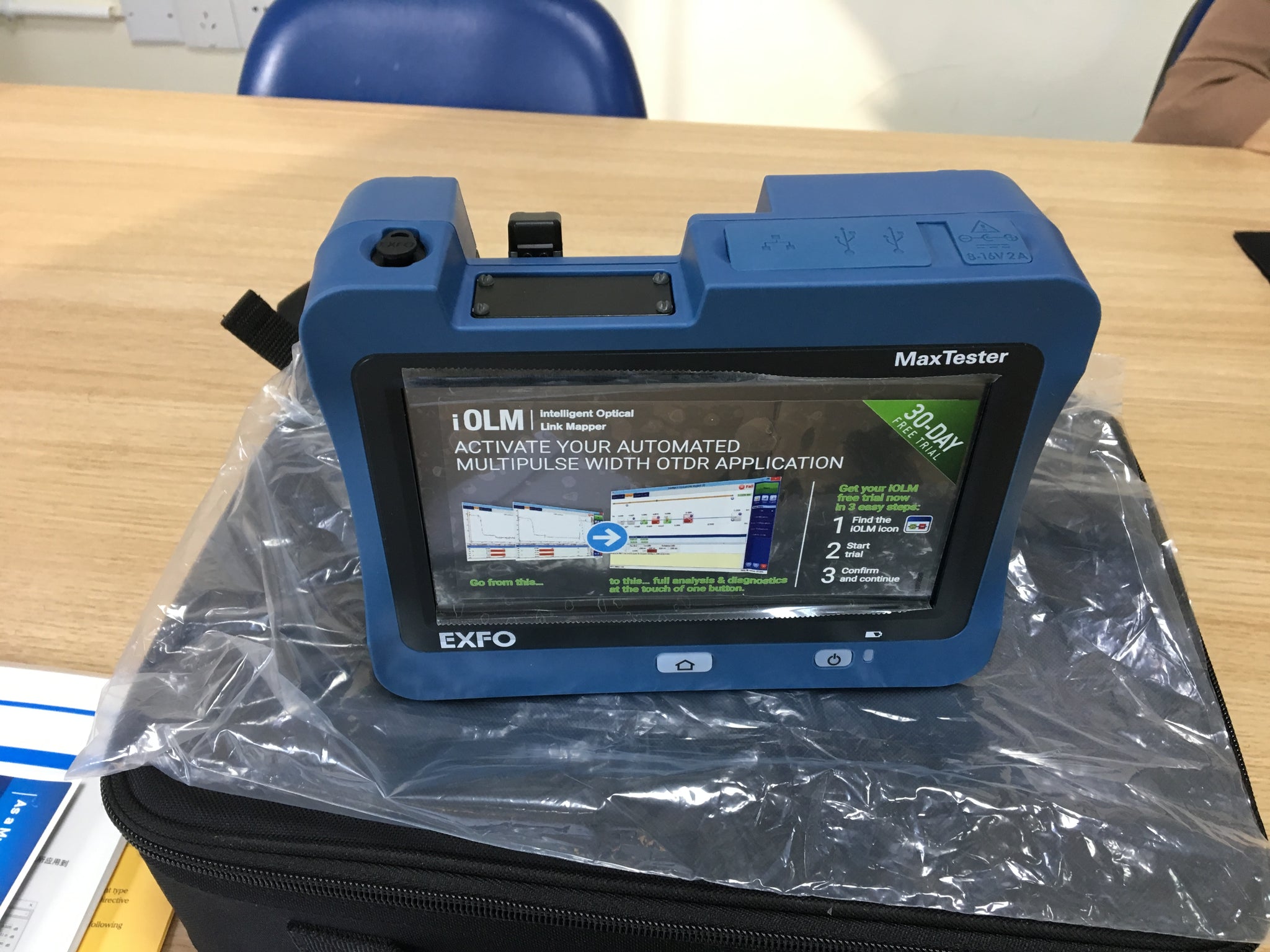

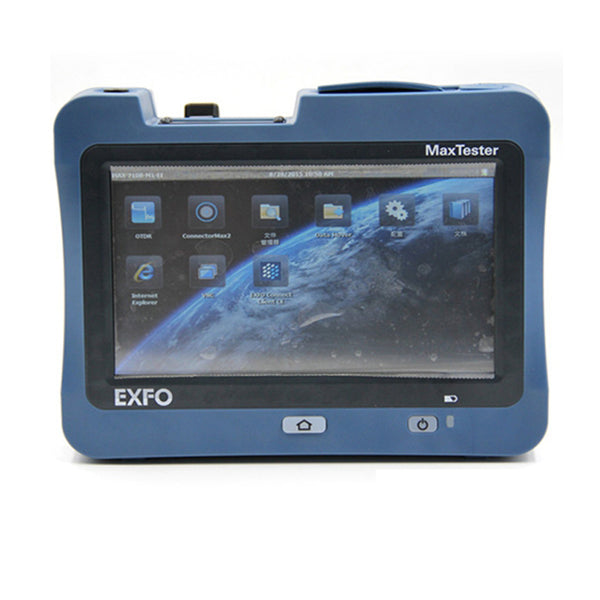

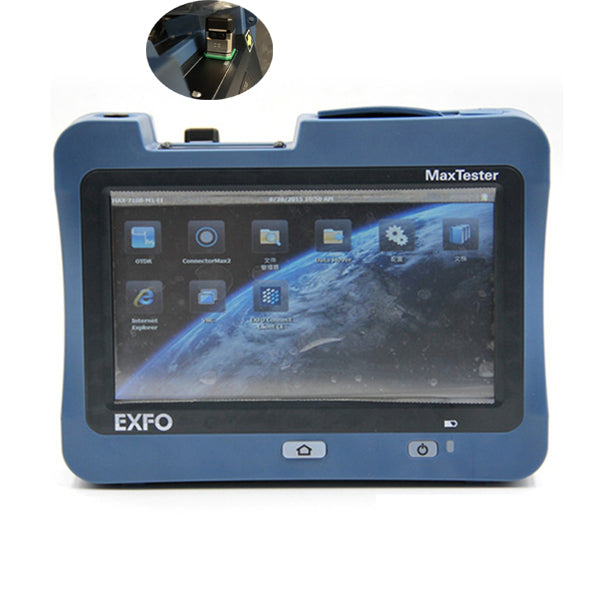

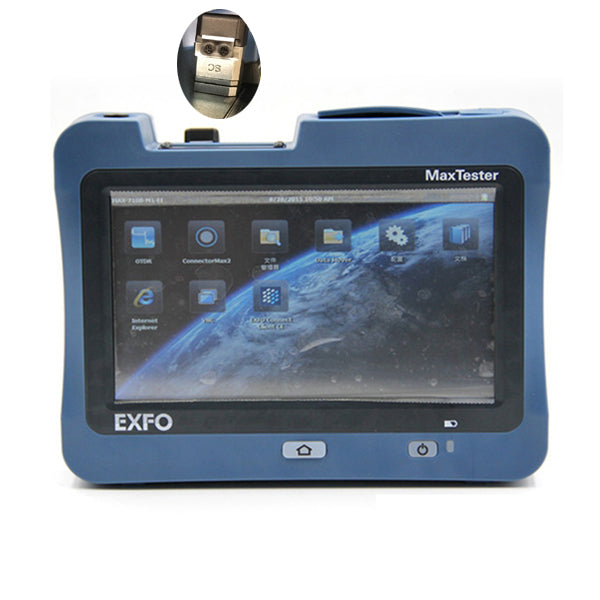

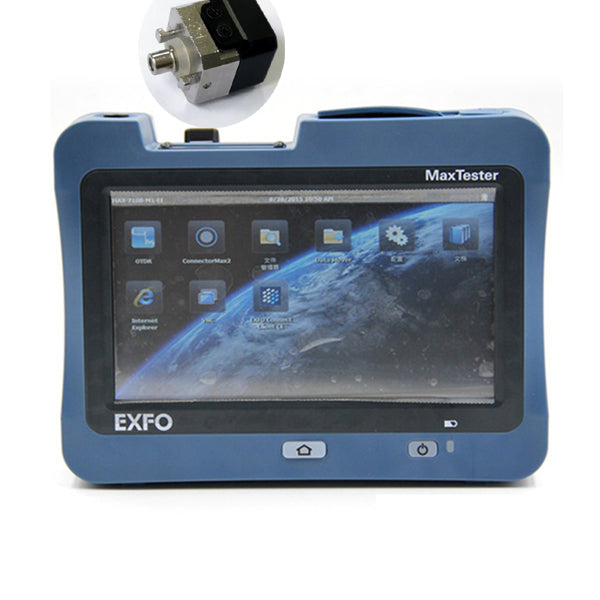

OTDR MAX-715B-M1-Oi(OTDR + iOLM), MaxTester SM Fiber OTDR, 1310/1550nm, APC/SC, UPC/FC

Regular price
$3,490.00
Sale price
$3,490.00
Regular price
$4,499.00
Sold out
Unit price
per
Shipping calculated at checkout.

EXFO Max Tester Max-715B-M1-EI (UPC),  FC or SC  signle model fiber OTDR

EXFO Max Tester Max-715B-M1-EA (APC),  FC or SC,  signle model fiber OTDR

OTDR Wavelength:  1310/1550nm,  30/28dB.

OTDR software:  Oi (OTDR + iOLM base software package)



Brand new,  with multi-language including English, Spanish, French....

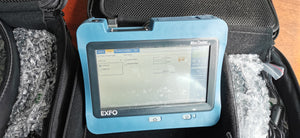

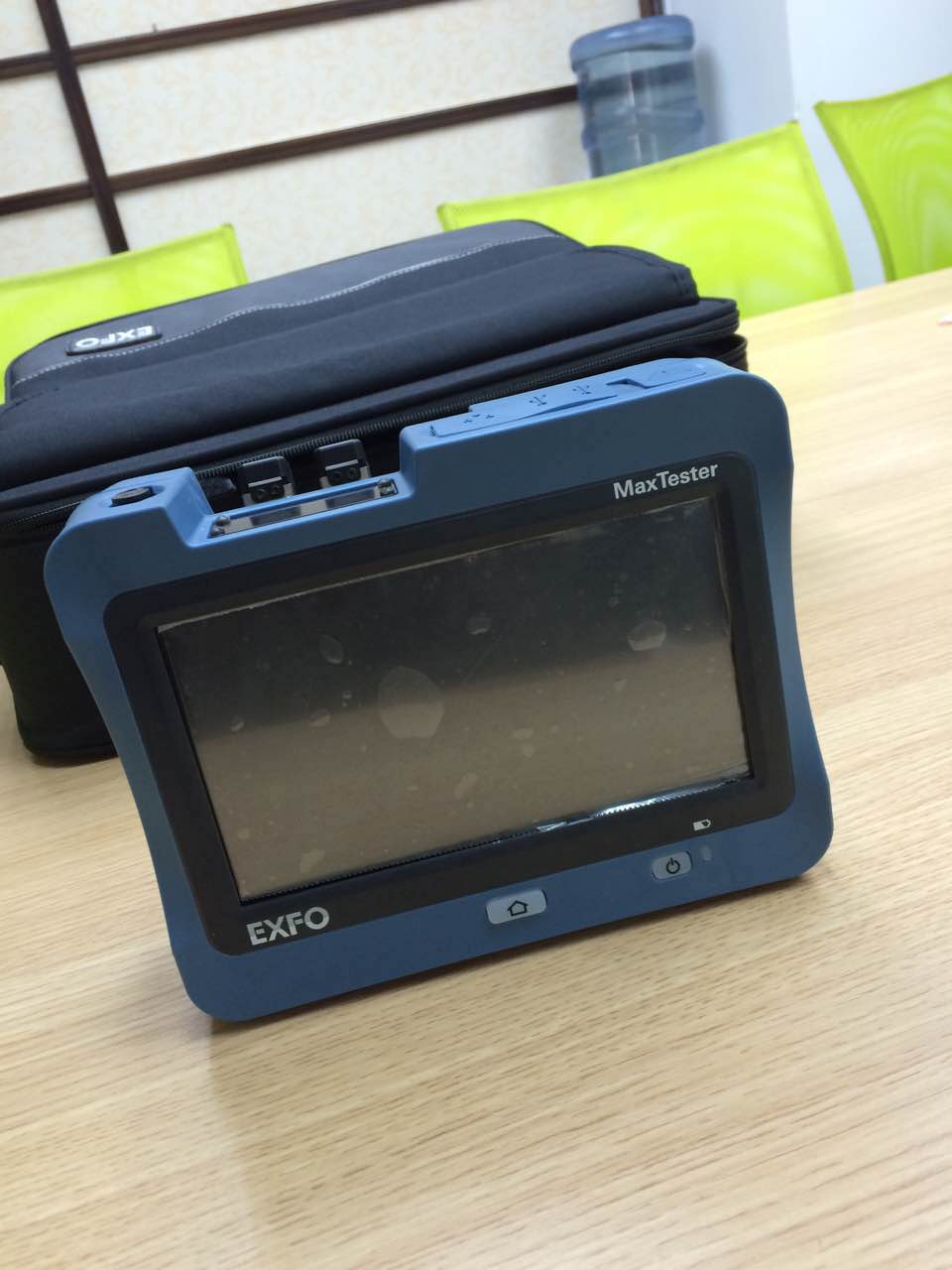

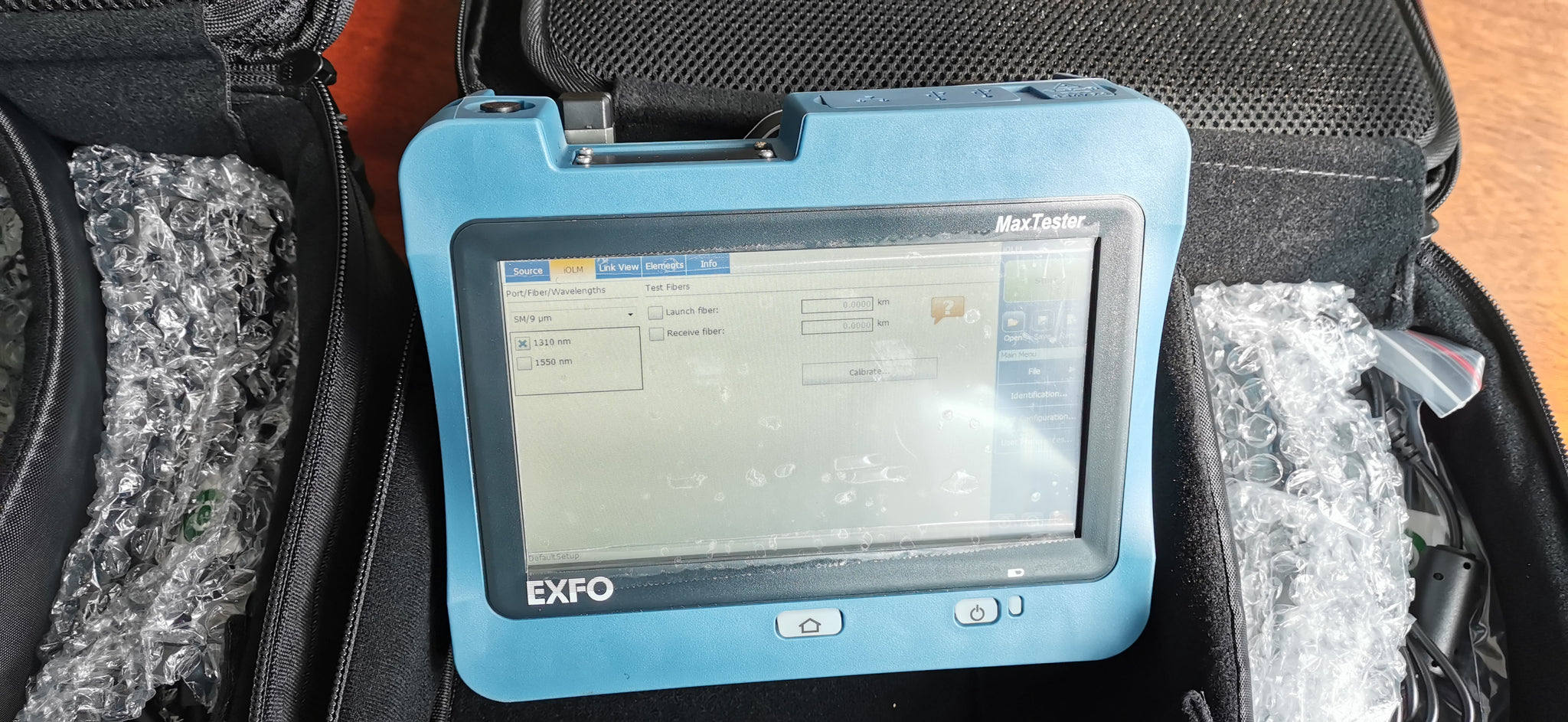

with standard packaging:  main unit, built-in battery, adaptor, power cable, softbag, touch pen, calibration certificate.

Specifications:

Display

7-in (178-mm) outdoor-enhanced touchscreen, 800 x 480 TFT

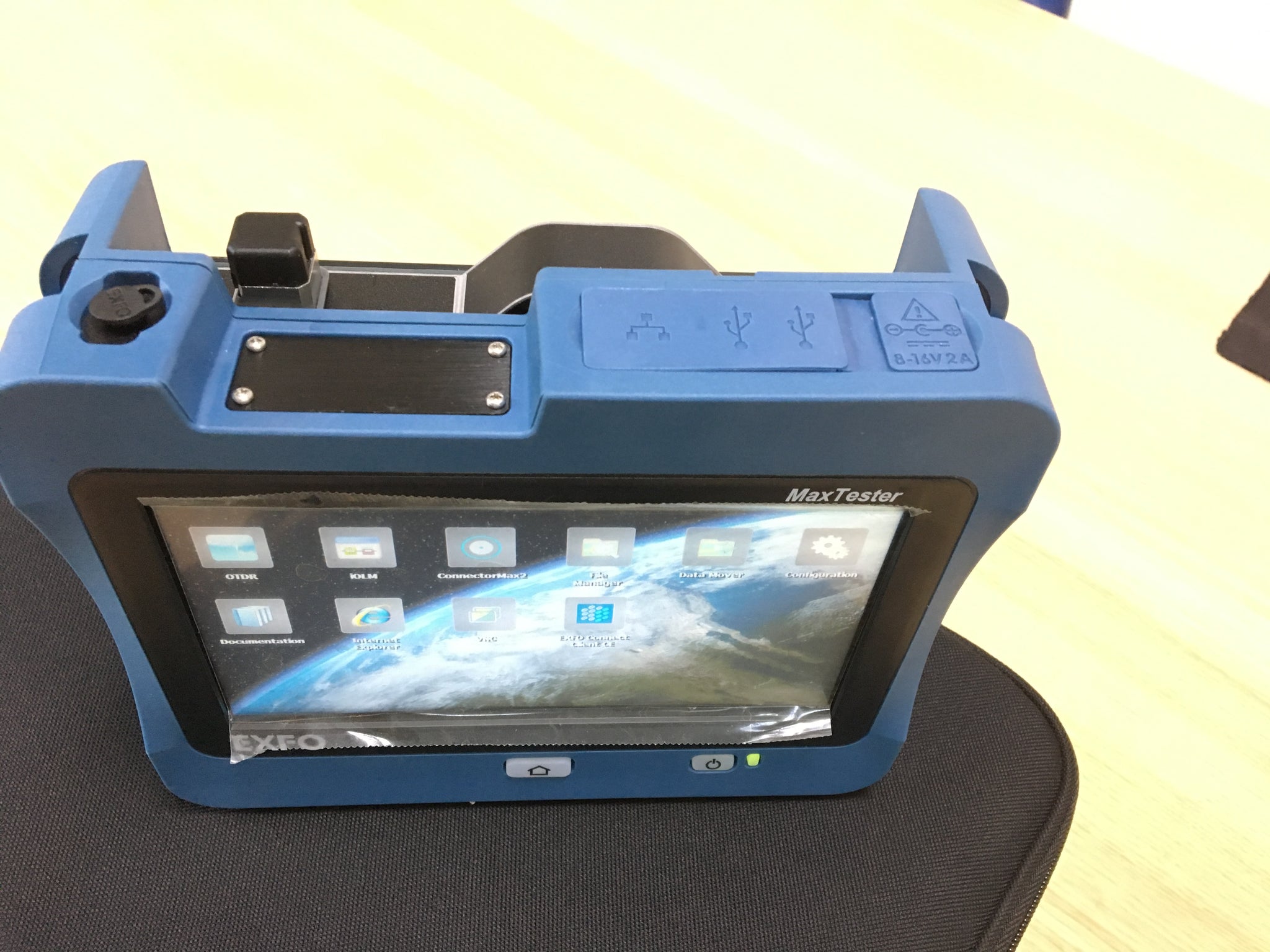

Interfaces

Two USB 2.0 ports
RJ45 LAN 10/100 Mbit/s

Storage

2 GB internal memory (20 000 OTDR traces, typical)

Batteries

Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138

Power supply

Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum

Wavelength (nm)

1310 ± 30/1550 ± 30

SM live port built-in filter

1625 nm: highpass >1595 nm isolation >50 dB from 1270 nm to 1585 nm

Dynamic range (dB)

30/28

Event dead zone (m)

1

Attenuation dead zone (m)

4

PON dead zone (m)

35

Distance range (km)

0.1 to 160

Pulse width (ns)

5 to 20 000

Linearity (dB/dB)

±0.05

Loss threshold (dB)

0.01

Loss resolution (dB)

0.001

Sampling resolution (m)

0.04 to 5

Sampling points

Up to 256 000

Distance uncertainty (m)

±(0.75 + 0.0025 % x distance + sampling resolution)

Measurement time

User-defined (maximum: 60 minutes)

Reflectance accuracy (dB)

±2

Typical real-time refresh (Hz)

3





--------------------------------------------------------------------------------------------------

We keep lots in stock, If you need more, please contact us directly!


Condition:  - Brand New .
Warranty Service :   - 12 months .
Package includes:  - standard package with accessories,  in carton.


Shipping:We are shipping the goods to every country of the world!
Usually the goods will be sent within 5 working days after payment, the shipping time depends on your country of residence, depending on your country's customs!

if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!



Payments :

Payment method:  Wire transfer,  Paypal, EscrowBuyer is under obligation if (in case) the item is liable to your country's customs duties.
We are not responsible for your country's any taxe or customs fee.
Our prices do NOT include any customs duty or tax.
Please verify it.


Return Policy :
All returns must be informed before returning.


Feedback Policy :
When you receive it, we sincerely hope that you will like it and appreciate our
customer services.
If you are pleased with your purchase, please leave us positive feedback once receiving the item, and we will return the feedback upon you.
If you have any problem with the outcome of the transaction or product, please don't respond with negative feedback before contacting us.So we can know what we should do to help you.
In the meantime, we will get to know where we should improve. we will do our best to resolve your case asap.


Contact us for details before you bid, in case any misunderstanding,
THANK YOU!!
