fibre splicing machine TEKCN TC-450 Fusion Splicer

Harga reguler
$699.00
Harga obral
$699.00
Harga reguler
$1,299.00
Habis
Harga satuan
per
Biaya pengiriman dihitung saat checkout.

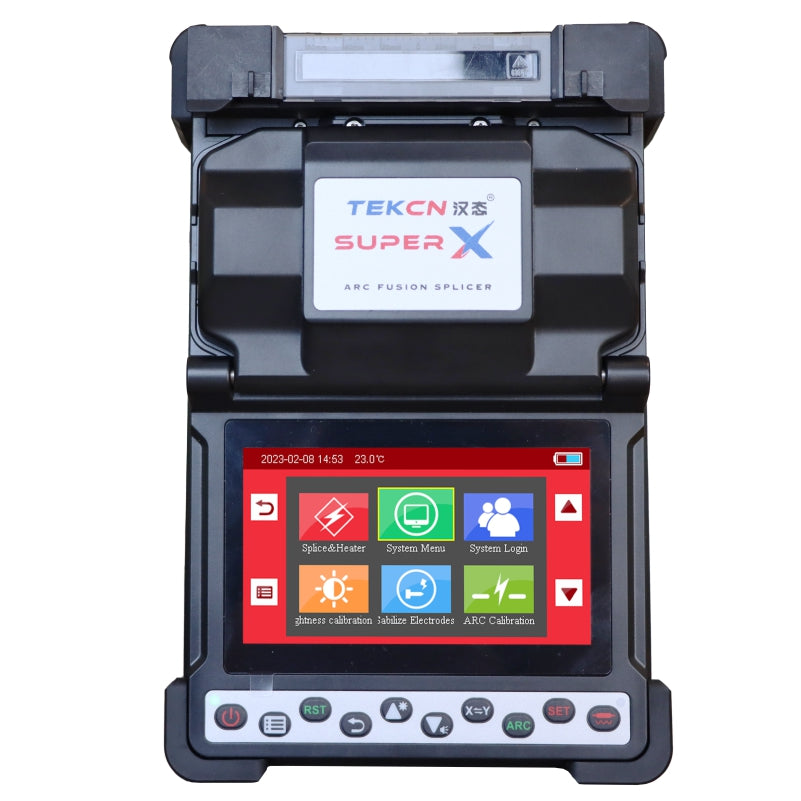

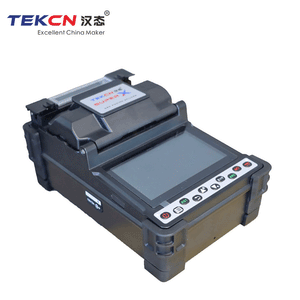

Optical fibre splicing TEKCN TC-450 FTTx Fusion Splicer



Auto splice mode manifest user-friendly design;
Dust-proof, water-proof, high-temperature resistance;
4.3” high resolution color LCD touch screen, 380X magnification;
Detachable 4800mAh battery, over 230 times of splicing and heating;
3 high-power white LEDs simplifies your work at night;
German CNC technique and integrated fiber-adjust frame.

Equipment Parameters

Model

TC-450

Dimension

115W*160L*135H (excluding rubber bumper) / 120W*165L*135H (including rubber bumper)

Weight

1735G (with battery) / 1355G (without battery)

Number of Fiber

Single

Applicable Fibers

SM(ITU-T G.652& G.657A, B)/MM(ITU-T G.651 )/DS(ITU-T G.653)/NZDS(ITU-T G.655)

Compatible Fiber/Cable

0.25 - 3.0mm/lndoor Cable/ drop cable (flat type)

Cleaved Length

Diameter: 100 - 1000μm/Cleave Length: 8-16mm

Cladding Diameter

80- 150 μm

Splicing Mode

Pre-set 41 splicing modes, max 100 modes (editable by user)

Heating Mode

Pre-set 5 heating modes (20/30/40/50/60mm), max 100 modes (editable by user)

  Typical Splice Loss

SM: 0.03dB / MM: 0.02dB/ DS: 0.05dB / NZDS: 0.05 dB/ G.657: 0.03dB (ITU-T Standard)

Return Loss

> 60dB

Lighting

3 White LEDs

Splicing Time

Quick mode: 6s

Estimated Splice Loss

Available

Heating Time

Quick heating time: 13s, typical heating time: 30s, adjustable for protection sleeve size 20 - 60mm

Results Storage

20000 latest records & 200 images

Tension Test

1.96-2.25N

Operating Condition

Operating Altitude: 0~5000m above sea level, 0 - 95% relative humidity,-20 ~ + 55 °C, Max Wind 15m/s

Storage Condition

0 ~ 95% relative humidity, -40 ~ 80 °C

Display

90° bi-directional view, 4.3" Color High Resolution LCD monitor

Fiber View & Magnification

X, Y, XY, X/Y: 380X Magnification

Power Supply

AC Input 100 -240V 50Hz DC Input 12-15V

No. of Splice/ Heating with Battery

4800mAh Battery Capacity, Typical 230 times (Splice + Heat)

Operating Methods

Button/Touch Screen

Automatic Calibration

Automatic arc calibration by air pressure and temperature

Electrode Life

5000 arcs

Terminal

Mini USB 2.0




Standard Accessories

Fusion splicer TC-450 *1

Carrying case*1

Fiber cleaver* 1

Carrying strap*1

Battery* 1

User manual*1

Power adapter*1

Splicing test report* 1

AC power line*1

Fiber stripper*1

Back-up electrode*1

Drop cable stripper*1

Cooling tray*1

Alcohol bottle* 1


--------------------------------------------------------------------------------------------------

We keep lots in stock, If you need more, please contact us directly!


Condition:  - Brand New .
Warranty Service :   - 12 months .
Package includes:  - standard package with accessories,  in carton.


Shipping:We are shipping the goods to every country of the world!
Usually the goods will be sent within 5 working days after payment, the shipping time depends on your country of residence, depending on your country's customs!

if out of delivery times, have not received merchandise, please contact us and we will solve the problem the first time!



Payments :

Payment method:   Paypal, Wire transfer,  EscrowBuyer is under obligation if (in case) the item is liable to your country's customs duties.
We are not responsible for your country's any taxe or customs fee.
Our prices do NOT include any customs duty or tax.
Please verify it.


Return Policy :
All returns must be informed before returning.


Feedback Policy :
When you receive it, we sincerely hope that you will like it and appreciate our
customer services.
If you are pleased with your purchase, please leave us positive feedback once receiving the item, and we will return the feedback upon you.
If you have any problem with the outcome of the transaction or product, please don't respond with negative feedback before contacting us.So we can know what we should do to help you.
In the meantime, we will get to know where we should improve. we will do our best to resolve your case asap.


Contact us for details before you bid, in case any misunderstanding,
THANK YOU!!

Customer Reviews

Based on 2 reviews Write a review

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Y
Y.m.

fibre splicing machine TEKCN TC-450 Fusion Splicer

R
R.Z.
Best budget splicer yet

We have a project where fiber needs to be extended from the building DMARC to the IDF. Using a 3rd cable installer was cost prohitive so we elected to handle the job internally. The project calls for 9/125u SM and pigtail fanouts and a small enclosure. The TEKCN-TC-450 looks and performs like the older Fujicora 40s. It is a straight forward core-alignment, v-grove splicer for SM/MM fiber. It's performing very well.
