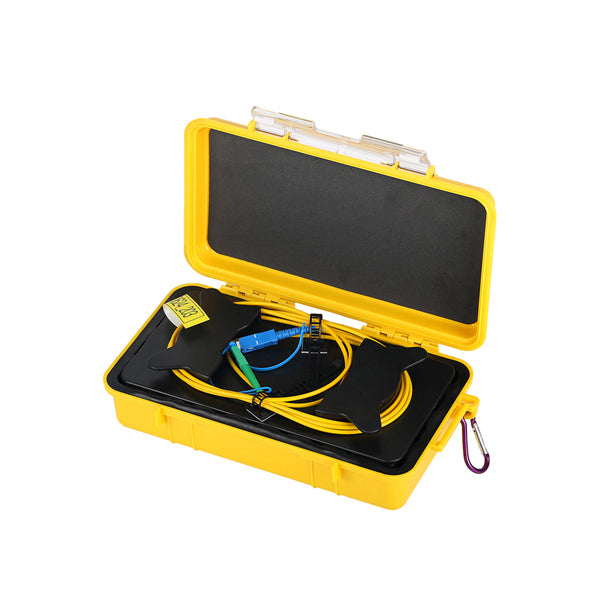

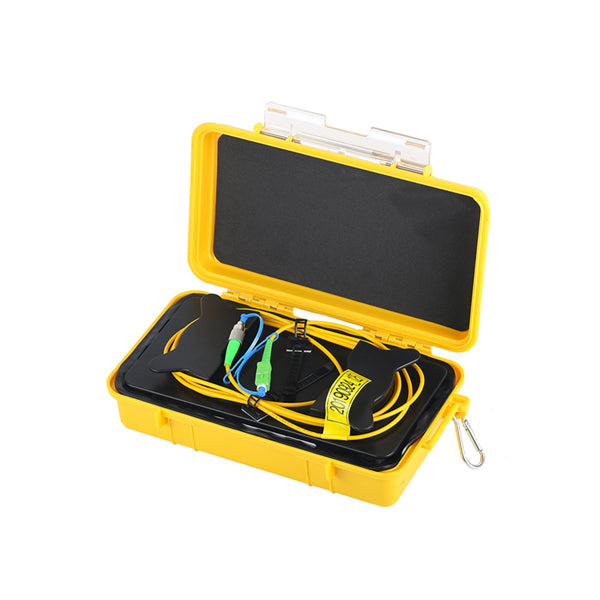

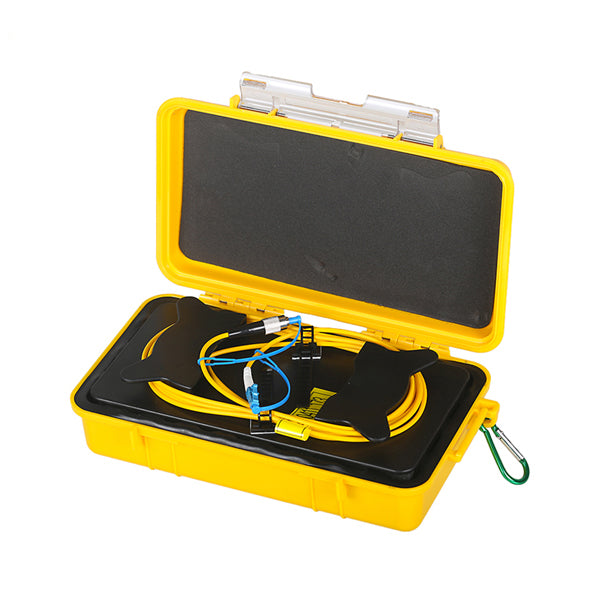

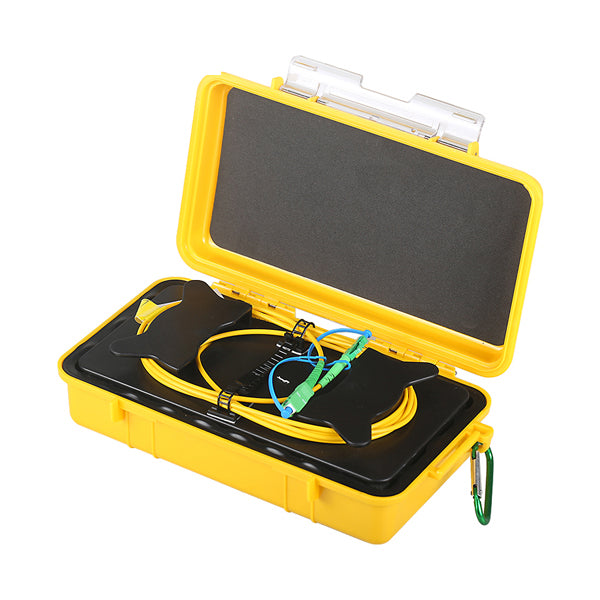

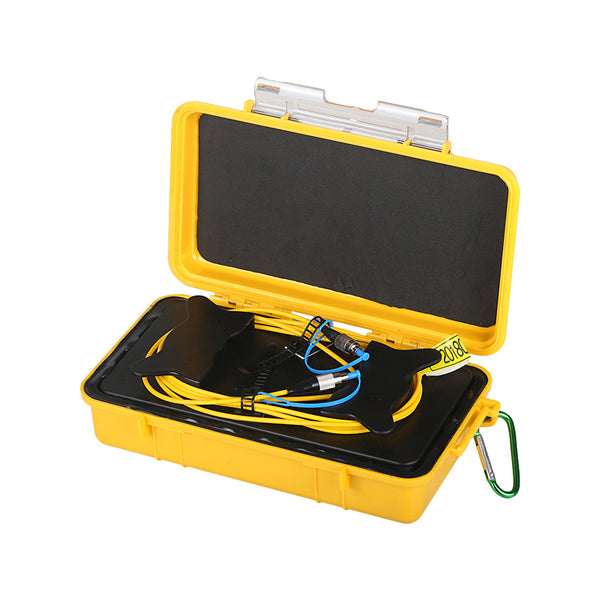

Optical Fiber Fings & Fiber Optic OTDR Launch cable box 2000m & OTDR Dead Zone Eliminator

Harga reguler
$159.00
Harga obral
$159.00
Harga reguler
$220.00
Habis
Harga satuan
per
Biaya pengiriman dihitung saat checkout.

2000m Fiber Optic OTDR Launch Cable Box Optic fiber jump cable,OTDR Dead Zone Eliminator,Fiber Optic OTDR Launch cable box,fiber rings FC/SC/ST/LC(UPC/APC)

An OTDR launch cable, which connects the OTDR to the link-under-test, discloses the insertion loss and reflectance of the near-end connection. It is often available on a small spool or within a “launch box”, which is used to create the proper conditions for testing another similar optical fiber for faults. This method avoids undesirable variations in loss and distance measurements. A launch fiber will help to overcome the blind spot or Dead Zone of an OTDR brought about by high launch power or faults near the launch end of the fiber.


Features

  1. Supply by: TEKCN
  2. Ruggedized Case
  3. G652D, G657A, OM1, OM2, OM3, OM4
  4. Case can house up to 2,000 meters of fiber
  5. Optional for with SC,LC,FC,ST,MU connector
  6. Robust carabiner clip
  7. Built-in cable management
  8. Auto-purge valve
  9. Compound latch with locking feature
  10. Water and dust proof allowing the unit to be taken into almost any environment.

Complied with or exceeds Standard

ITU-T G652.D, G656.A

ITU-T G651.1 OM1 OM2 OM3 OM4

IEC60793-2-10  type A1a.1/A1b OM1/OM2, type A1a.2 OM3, type A1a.3 OM4

RoHS Compliant Directive 2011/65/EU

Fiber & Connector Characteristics

Fiber Types

G652D

Fiber Length (m)

1000m

Lead Length

2 Meters, 3mm buffer

Typical Loss

<0.5dB @ 1310 for 1000 meters

Connector Type

SC/LC/FC/ST

Polish

PC, UPC, APC

Return Loss*

UPC>=50dB, APC>=60dB, PC>=35dB

Repeatability (dB)

<=0.2 (1000 times)

Exchangeability (dB)

<=0.2



Mechanical & Environmental Characteristics

Dimension

23.8CMx 14.1CM x 6.7CM

Material

SR Polypropylene

Color

Yellow

Weight

0.75kg without fiber

Packaging

Rugged, hard-shell transit case

Storage Temperature

-40℃to +85℃

Operating Temperature

-40℃ to +85℃

Humidity

0 to 95%, non-condensing



Applications

Widely used with OTDR to help minimize measurement uncertainty indoor or outdoor

se as OTDR launch/receive cable

Test link loss with an OTDR

Measure insertion loss and reflectance of near/far end connector.

Pulse suppressor for the first reflection at the beginning of a fiber.
