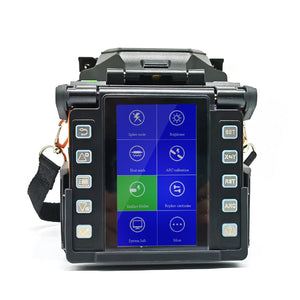

Fusion splicer COMWAY C6S fiber splicing machine

Harga reguler
$2,500.00
Harga obral
$2,500.00
Harga reguler
$2,800.00
Habis
Harga satuan
per
Biaya pengiriman dihitung saat checkout.

Fusion splicer COMWAY C6S fiber splicing machine





Feature:
PAS alignment system
Splicing 6 sec., heating 12 sec.
Fast boot technology
More than 350 times splicing and heating
Resist dust, rain, wind, and shock
Fiber type identify, AUTO splicing mode
Easy to change electrode and fiber holder
High speed USB, maintenance via the Internet
Size & Weight
D156×W135×H149(mm), 2.0kg without battery, 2.5kg with 7800mAh
Fiber alignment
6 motors core alignment
Fiber type
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)
Splice mode
Single fiber
Fiber diameter
Cladding diameter 80~150µm, coating 100~1000µm
Cleave length
250µm cladding diameter 8~16mm,
over 250µm cladding diameter 16mm
Splicing programs
Max. 100
Splicing cycle time
6 sec. SM-SM Fast program,
12 sec. AUTO program
Heating programs
Max. 30
Heating cycle time
Adjustable, 25 sec. typical
Splice protector
10 ~ 60mm
Splice image capture
Max. 30
Splice data storage
Max. 3000
Splice loss

SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB
Return loss
>>60dB
Loss estination
Provided
Operation condition
Altitude 0~5000m, Humidity 0~95%,Temperature,-10~+50°C,
Wind velocity up to 15m/s
Storage condition
Humidity 0~95%, Temperature -40~+80°C (Battery -10~+40°C)
Tension
1.96~2.25N
Fiber view
Two cameras observation,
4.1 inch color screen
Fiber magnification
300x fo X or Y single axis view,
180x for both X&Y dual axis view
Port
High speed USB, used for PC software connection and firmware upgrade
Electrode life
50000 arc discharges
Power supply
AC100-240V, 50/60Hz
Battery module
5600mAh High capacity battery,
more than 350 times splicing and heating
