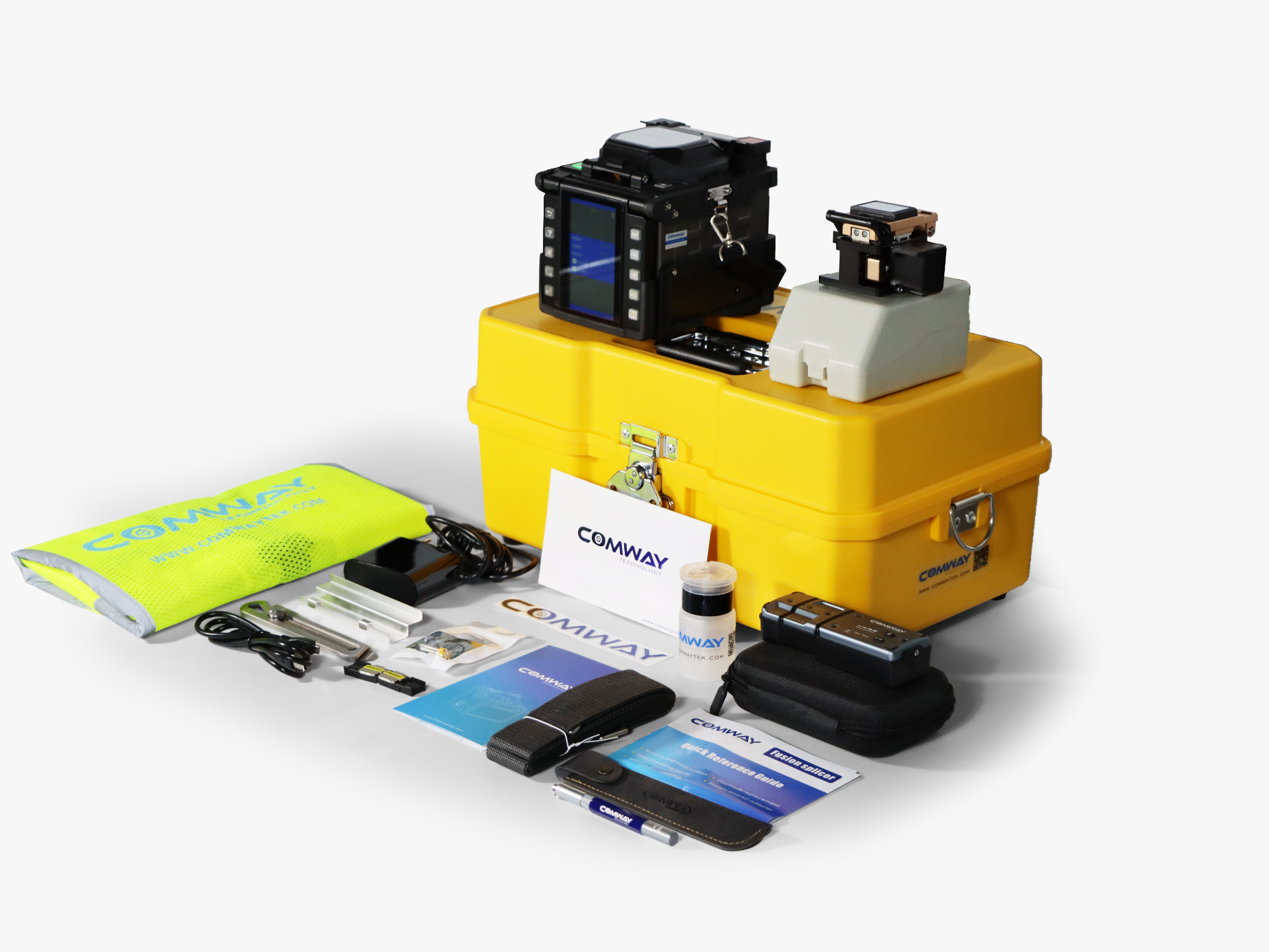

COMWAY C10R — High-Speed 12-Core Ribbon Fusion Splicer for Data Centers & Backbone Networks
The COMWAY C10R is a professional 12-core ribbon fusion splicer designed to maximize productivity in high-density fiber environments. Splice an entire 12-fiber ribbon in just 6 seconds with typical loss as low as ≤0.05dB — making it the ideal choice for data center builds, backbone infrastructure, and large-scale FTTH rollouts.
🔑 Key Features
- 12-Fiber Simultaneous Splicing — Dramatically reduces splicing time vs. single-fiber splicers
- 6-Second Splice / 15-Second Heat — Industry-leading ribbon splice speed
- Typical Splice Loss ≤0.05dB (SM Ribbon) — Consistent, low-loss results
- Dual 4.3" Color LCD Screens — Real-time fiber alignment view from both axes
- ARC Adjust & Electrode Stabilize — Automatic arc calibration for consistent quality
- IP52 Rated — Protected against dust and light moisture
- 200+ Splices Per Charge — Full-day field operation
- Compact & Lightweight: 1.2kg, 160×140×110mm
- 2-Year Free Warranty
📐 Technical Specifications
Specifications：
|
Size and weight |
D156×W135×H149(mm), 1.7kg (2.5kg with battery) |
|
Applicable fibers |
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZ DS(ITU-T G.655), BI(ITU-T G.657) |
|
Fiber count |
Single to 12 |
|
Cladding dia. / Sheath dia. |
Single: 125μm / 160μm to 3mm by fiber holder system Ribbon: 125μm / Ribbon fiber thickness 0.25 to 0.4mm |
|
Cleave length |
9mm to 9.5mm |
|
Splice mode |
Total 100 splice modes |
|
Typical splice time |
13sec with SM FAST, 16sec with SM AUTO |
|
Heating mode |
20 heating modes |
|
Typical tube heating time |
35sec SM FAST |
|
Applicable protection sleeve |
25~60mm sleeve |
|
Splice image capture |
Max.800 |
|
Splice result storage |
Max.10000 |
|
Typical splice loss |
SM:0.05dB, MM:0.03dB,DS:0.08dB,NZ/NZ DS:0.08dB, BI:0.05dB |
|
Return loss |
>>60dB |
|
Fiber View |
Two axis CMOS camera with 4.1 inch high-light color LCD |
|
Fiber magnification |
X / Y (32-130X magnification), or both X and Y simultaneously |
|
Operating condition |
Altitude: 0~3800m above sea level, Temperature : -10~+50℃, Wind : 15m/sec Humidity : 0 ~95%RH |
|
Tension test |
1.96~2.25N |
|
Electrode life |
2000 splices |
|
Power supply |
AC100~240V, 50/60Hz |
|
Battery parameters |
8400mAh high capacity battery, more than 200 times splicing and heating |
|
Terminal |
USB 2.0 connector for PC communication. |
|
Other features |
Time-delay password against theft ID electrode against fake |
|
Option |
GPS location system |
🏗️ Ideal Applications
Data center fiber infrastructure · Backbone ribbon cable networks · Large-scale FTTH/FTTB deployment · Telecom central office splicing · High-density fiber distribution frames (FDF)
✅ FAQ
Q1: What is a ribbon fusion splicer and why do I need one?
A: A ribbon fusion splicer splices multiple fibers (up to 12) simultaneously, dramatically reducing splicing time compared to single-fiber splicers. It's essential for data centers and backbone networks where ribbon cables are used.
Q2: How many fibers can the COMWAY C10R splice at once?
A: The C10R splices 2 to 12 fibers simultaneously in a single arc, completing a full 12-fiber ribbon splice in just 6 seconds.
Q3: What is the typical splice loss of the COMWAY C10R?
A: Typical splice loss is ≤0.05dB for SM ribbon fibers and ≤0.1dB for MM ribbon fibers — meeting the stringent requirements of data center and backbone applications.
Q4: Is the COMWAY C10R compatible with standard ribbon fiber cables?
A: Yes. The C10R is compatible with standard 2–12 fiber ribbon cables used in telecommunications, data centers, and FTTH backbone networks.
Q5: How does the COMWAY C10R compare to Fujikura 88R or 90R?
A: The C10R delivers comparable 12-fiber ribbon splicing performance to the Fujikura 88R/90R at a more competitive price, with dual LCD screens and a 2-year warranty included.
Q6: What warranty is included?
A: The COMWAY C10R comes with a 2-year free manufacturer warranty.
