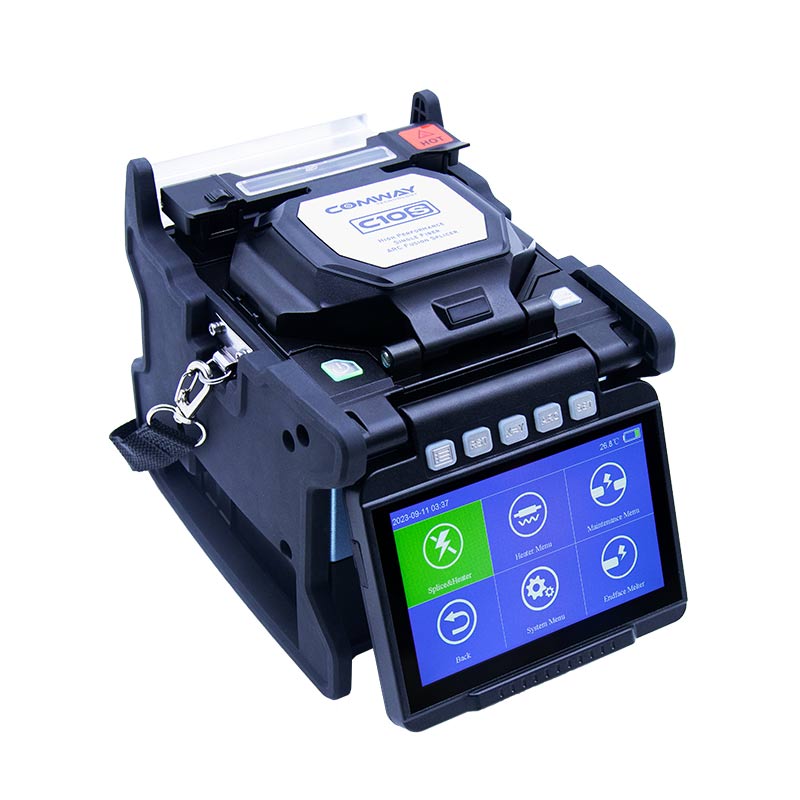

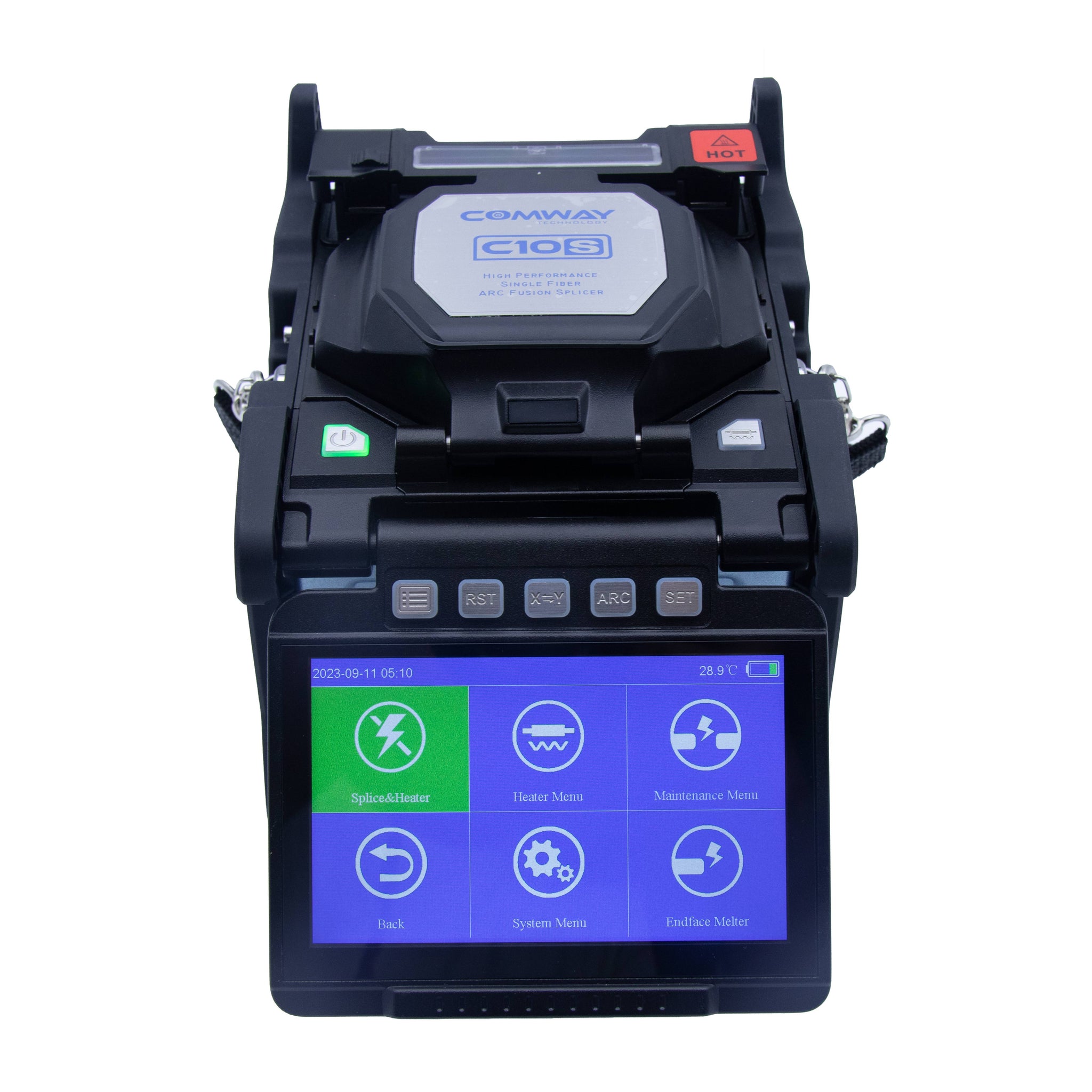

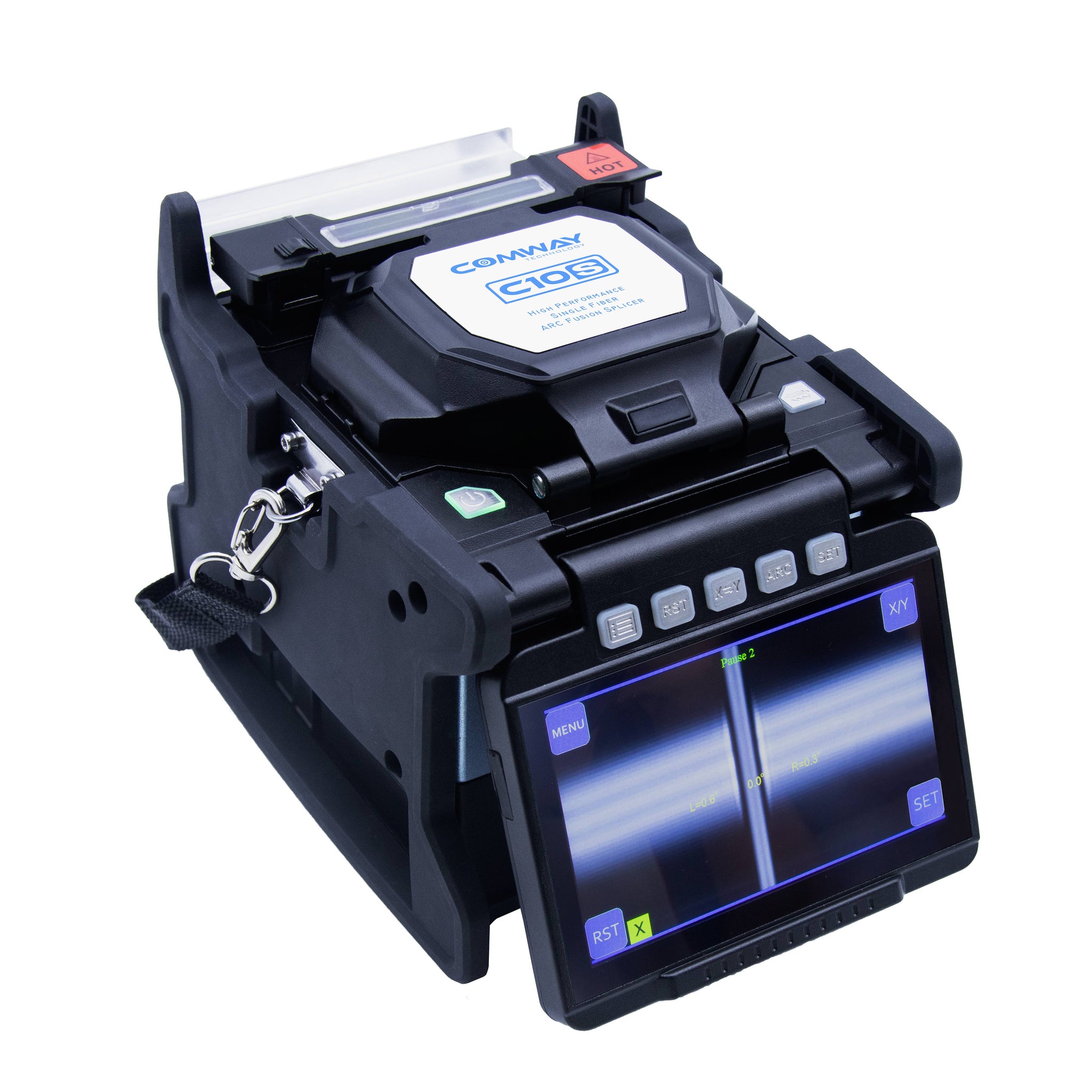

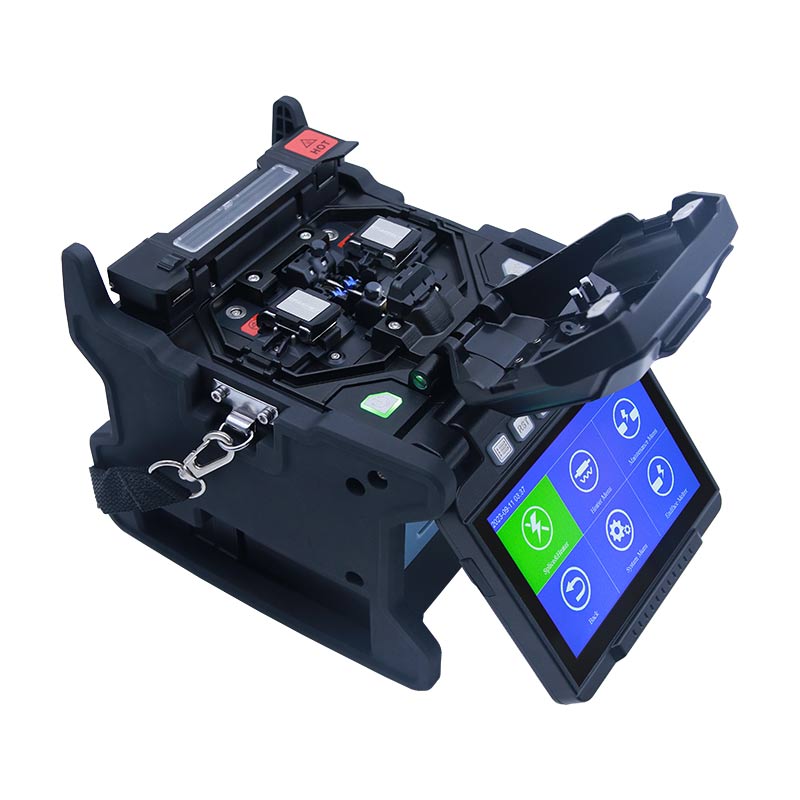

COMWAY C10S V2 — Professional Core Alignment Fusion Splicer for 5G & Backbone Networks
The COMWAY C10S V2 is a next-generation 6-motor core alignment fusion splicer engineered for 5G infrastructure, backbone fiber networks, and high-demand FTTH deployments. With industry-leading splice speed and support for G.654E ultra-low-loss fiber, the C10S V2 delivers the precision and reliability that professional fiber technicians demand.
🔑 Key Features
- 6-Motor Core Alignment — Sub-micron precision for consistent, low-loss splices
- 5-Second Splice / 8-Second Heat — Maximum field productivity
- G.654E Fiber Support — Future-ready for 5G long-haul networks
- 750× Single-Axis Magnification — Ultra-clear fiber end-face inspection
- 5-Inch HD Touch Screen — Intuitive operation in any lighting condition
- IP-Rated: Waterproof, Dustproof & Anti-Shock — Built for harsh field environments
- 8,400mAh Battery — 350+ splice/heat cycles per charge
- GPS + Remote Lock (Optional) — Anti-theft security for valuable equipment
- Dual Function: Fiber End-Face Melter + Fusion Splicer
📐 Technical Specifications
- Alignment Method: 6-Motor Core Alignment
- Fiber Types: SM (G.652/G.654E), MM, DS, NZ/NZDS, BI
- Splice Loss (Typical): SM ≤0.02dB | MM ≤0.01dB
- Splice Time: 5 sec (Fast Mode)
- Heat Time: 8 sec
- Display: 5-inch HD Touchscreen
- Battery: 8,400mAh Li-ion | 350+ cycles
- Operating Temp: -10°C to +50°C | Altitude: up to 5,000m
- Protection: IP54 (Waterproof + Dustproof)
🏗️ Ideal Applications
5G backbone construction · Long-haul fiber networks · Data center interconnects · FTTH/FTTB deployment · Aerial and underground cable splicing
📦 What's in the Box
COMWAY C10S V2 Fusion Splicer · Fiber Cleaver · Stripper · Carrying Case · AC Adapter · Battery · Electrodes · User Manual
Q1: What fiber types does the COMWAY C10S V2 support?
A: The C10S V2 supports SM (G.652D, G.654E), MM, DS, NZ/NZDS, and BI fiber types, making it compatible with virtually all modern fiber optic cable standards including 5G-grade ultra-low-loss G.654E fiber.
Q2: How fast is the COMWAY C10S V2 fusion splicer?
A: It achieves a 5-second splice time and 8-second heat shrink time — among the fastest in its class — enabling high-throughput fiber splicing for large-scale projects.
Q3: Is the COMWAY C10S V2 suitable for outdoor and harsh environments?
A: Yes. The C10S V2 is IP54-rated (waterproof and dustproof), anti-shock, and operates from -10°C to +50°C at altitudes up to 5,000m, making it ideal for outdoor field use.
Q4: How many splices can I do on one battery charge?
A: The 8,400mAh Li-ion battery supports 350+ splice/heat cycles per charge, sufficient for a full day of intensive field work.
Q5: Does the COMWAY C10S V2 have anti-theft features?
A: Yes. An optional GPS module and Remote Lock function allow you to track and lock the device remotely, protecting your investment on job sites.
Q6: How does the COMWAY C10S V2 compare to Fujikura or Sumitomo splicers?
A: The C10S V2 offers comparable 6-motor core alignment precision and splice speed to premium Japanese brands at a significantly lower price point, with the added benefit of G.654E support for 5G networks.
Q7: What warranty does the COMWAY C10S V2 come with?
A: The COMWAY C10S V2 includes a 2-year manufacturer warranty covering defects in materials and workmanship.
