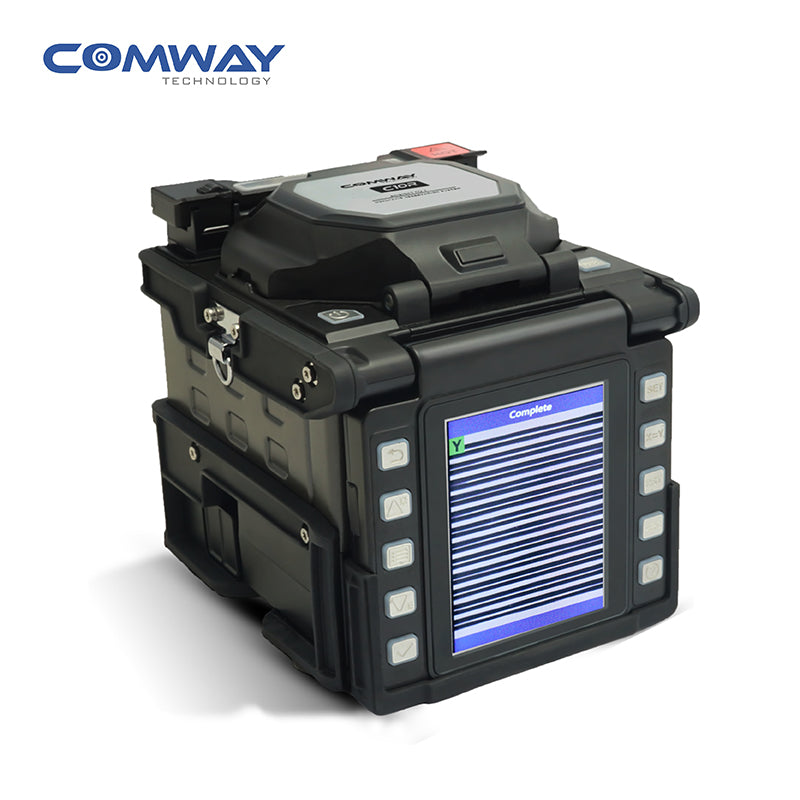

Best Ribbon Fusion Splicer COMWAY C10R Ribbon fusion splicer Mass Splicing Machine for sale
Comway C10R is a professional 12-core ribbon fusion splicer designed for high-efficiency, low-loss splicing in fiber optic backbone, data center, and FTTH projects.
COMWAY Fusion splicer– The Practical Choice fusion splicer for Contractors
Positioned as a professional alternative between low-cost entry models and premium USA brands.
Widely regarded by contractors as the preferred fiber optic fusion splicing brand for infrastructure and FTTH deployments in developing countries.
Combines professional-grade stability with affordable pricing, enabling contractors to deliver consistent results.
The C10R is specifically designed for 2-12 cores ribbon fiber splicing, supporting multi-core fusion in a single process.
It features a high-capacity battery, spare fiber holders,Thermal Fiber Stripper， and advanced accessories, making it suitable for large-scale projects requiring high productivity.
Key indicators
13sec splicing time, 35sec heating time
Over 130X magnification to see fiber core clearly
Hight capacity battery, supports more than 200 times splicing and heating
12-Core, Low Loss, High Efficiency
Two year free warranty
Specifications：
|
Size and weight
|
D156×W135×H149(mm), 1.7kg (2.5kg with battery)
|
|
Applicable fibers
|
SM(ITU-T G.652), MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZ DS(ITU-T G.655), BI(ITU-T G.657)
|
|
Fiber count
|
Single to 12
|
|
Cladding dia. / Sheath dia.
|
Single: 125μm / 160μm to 3mm by fiber holder system
Ribbon: 125μm / Ribbon fiber thickness 0.25 to 0.4mm
|
|
Cleave length
|
9mm to 9.5mm
|
|
Splice mode
|
Total 100 splice modes
|
|
Typical splice time
|
13sec with SM FAST, 16sec with SM AUTO
|
|
Heating mode
|
20 heating modes
|
|
Typical tube heating time
|
35sec SM FAST
|
|
Applicable protection sleeve
|
25~60mm sleeve
|
|
Splice image capture
|
Max.800
|
|
Splice result storage
|
Max.10000
|
|
Typical splice loss
|
SM:0.05dB, MM:0.03dB,DS:0.08dB,NZ/NZ DS:0.08dB, BI:0.05dB
|
|
Return loss
|
>>60dB
|
|
Fiber View
|
Two axis CMOS camera with 4.1 inch high-light color LCD
|
|
Fiber magnification
|
X / Y (32-130X magnification), or both X and Y simultaneously
|
|
Operating condition
|
Altitude: 0~3800m above sea level, Temperature : -10~+50℃, Wind : 15m/sec Humidity : 0 ~95%RH
|
|
Tension test
|
1.96~2.25N
|
|
Electrode life
|
2000 splices
|
|
Power supply
|
AC100~240V, 50/60Hz
|
|
Battery parameters
|
8400mAh high capacity battery, more than 200 times splicing and heating
|
|
Terminal
|
USB 2.0 connector for PC communication.
|
|
Other features
|
Time-delay password against theft
ID electrode against fake
|
|
Option
|
GPS location system
|
Standard Package
FAQ (Frequently Asked Questions)
Q1: Can the Comway C10R ribbon splice 12-core ribbon fiber?
A1: Yes, the C10R is specifically designed for 12-core ribbon fiber splicing, capable of processing up to 12 fibers simultaneously with high precision and low loss.
Q2: What is the typical splice loss of the C10R for single-mode (SM) ribbon fiber?
A2: The typical splice loss for SM ribbon fiber is ≤0.05dB, ensuring stable and reliable signal transmission in long-haul and backbone projects.
Q3: How fast is the splicing and heating cycle of the C10R?
A3: The C10R features a fast splicing cycle of 6 seconds (typical) and a heating cycle of 15 seconds (typical), significantly improving work efficiency.
Q4: Is the Comway C10R suitable for outdoor and harsh environments?
A4: Yes, the C10R has an IP52 dustproof and waterproof rating, and can operate in temperatures ranging from -10°C to +50°C, making it ideal for outdoor field work.
Q5: How long does the battery last on a single charge?
A5: The high-capacity Li-ion battery supports over 200 splices per full charge, meeting the needs of all-day field operations.
Q6: What fiber types does the C10R support?
A6: It supports multiple fiber types, including single-mode (SM, G.652), multi-mode (MM, G.651), dispersion-shifted (DS), and non-zero dispersion-shifted (NZDS) fibers, as well as 12-core ribbon fibers.
Q7: Do I need to perform calibration (EO/GEO) after replacing the electrode?
A7: Yes, it is recommended to perform Electrode Stabilize and ARC Adjust (EO/GEO) after replacing the electrode to ensure stable arc discharge and optimal splicing performance.
Q8: Is the Comway C10R compatible with Fujikura or Sumitomo accessories?
A8: The C10R is designed to work with genuine Comway accessories for the best performance. While some universal accessories may be compatible, we recommend using Comway original parts to avoid performance issues.
Q9:How long is the warranty period?
A8：Two year free warranty.
