Top 5 Best Fusion Splicer machine July In 2022

       Fusion splicer is a high-tech instrument that combines optics, electronic technology and precision machinery. It is mainly used for the construction and maintenance of optical cables in optical communication, so it is also called optical cable welding machine or splicing machine.

       The general working principle is to use high-voltage arc to melt the sections of two optical fibers, and at the same time, use high-precision motion mechanism to smoothly promote the fusion of two optical fibers into one. The fused optical fibers have the characteristics of low loss and high mechanical strength, so as to realize the coupling of optical fiber mode fields and realize the effective transmission of signals.



Top 1, Fujikura 90s+ fusion splicer   price usd6299/set

fujikura 90s+ fusion splicer

Fujikura 90S+ is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.

The Fujikura  90S+ splicing machine possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The tool finds the true core position and achieves the consistent lower splice loss. The device features fiber discrimination function: it automatically identifies the optimum arc discharge parameters in accordance with the fiber type.

Fujikura 90S+ has faster automated features that reduce installation time. The user can complete the entire splicing process without touching the tool and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out.

Features
Splicing time: 7-9 sec (SM FAST mode).
Heat time: 13-15 sec (for 60 mm sleeves).
Core alignment technology.
Advanced image processing technology.
Fiber discrimination function.
The faster automated features.
Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
Easy fiber protection sleeve positioning.
The lid of the carrying case may be used as a work table.
Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
The sheath clamp is compatible with loose tube fiber.
Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
The tool can connect two cleavers simultaneously.
Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
Operation manual is installed into the splicer.
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
5-inch color TFT touch screen display.

Technical Specifications

Fiber alignment method active core alignment
Applicable fiber fiber type Single mode optical fiber
Multi mode optical fiber
cladding diameter 80 μm - 150 μm
Applicable coating sheath clamp coating diameter: max. 3 000 μm
cleave length: 5 mm - 16 mm
Fiber splice performance splice loss ITU-T G.652: avg. 0.02 dB
ITU-T G.651: avg. 0.01 dB
ITU-T G.653: avg. 0.04 dB
ITU-T G.655: avg. 0.04 dB
ITU-T G.657: avg. 0.02 dB
splice time SM FAST mode: avg. 7 sec - 9 sec
AUTO mode: 14 sec - 16 sec
Applicable protection sleeve sleeve type heat shrinkable sleeve
sleeve length max. 66 mm
sleeve diameter max. 6.0 mm before shrinking
Sleeve heat performance heat time 60 mm slim mode: avg. 9 sec - 10 sec
60 mm mode: avg. 13 sec - 15 sec
Fiber tensile test force approx. 2.0 N
Electrode life approx. 5 000 splices
Dimensions (W × D × H) 170 × 173 × 150 mm
Weight 2.8 kg (with battery)
Environmental condition temperature operate: -10°C - +50°C
storage: -40°C - +80°C
humidity operate: 0% - 95% RH non-condensing
storage: 0% - 95% RH non-condensing
altitude max. 5 000 m
AC adaptor input AC 100 to 240 V, 50/60 Hz, max. 1.5 A
Battery pack type rechargeable lithium-ion
output approx. DC 14.4 V / 6,380 mAh
capacity approx. 300 splice and heat cycles
temperature recharge: 0°C - 30°C
storage: -20°C - +30°C
battery life approx. 500 recharge cycles
Display LCD monitor TFT 5 inches with touch screen
magnification 200 to 300x
Illumination V-grooves LED lamp
Interface PC USB2.0 Mini B type
external LED lamp USB2.0 A type
approx. DC 5 V, 500 mA
ribbon stripper Mini DIN 6 pin
DC 12 V, max. 1 A
wireless Bluetooth 4.1 LE
Data storage splice mode 100 splice modes
heat mode 30 heat modes
splice result 20 000 splices
splice image 100 images
Screw hole for tripod 1/4-20UNC
Other features automatic functions splice mode select by fiber type analysis
discharge power calibration
wind protector: open/close
sheath clamp: open
heater lid: open/close
heater clamp: open/close
reference guide video and PDF file stored in splicer
sheath clamp easy sleeve positioning clamp
electrode replaceable without tool

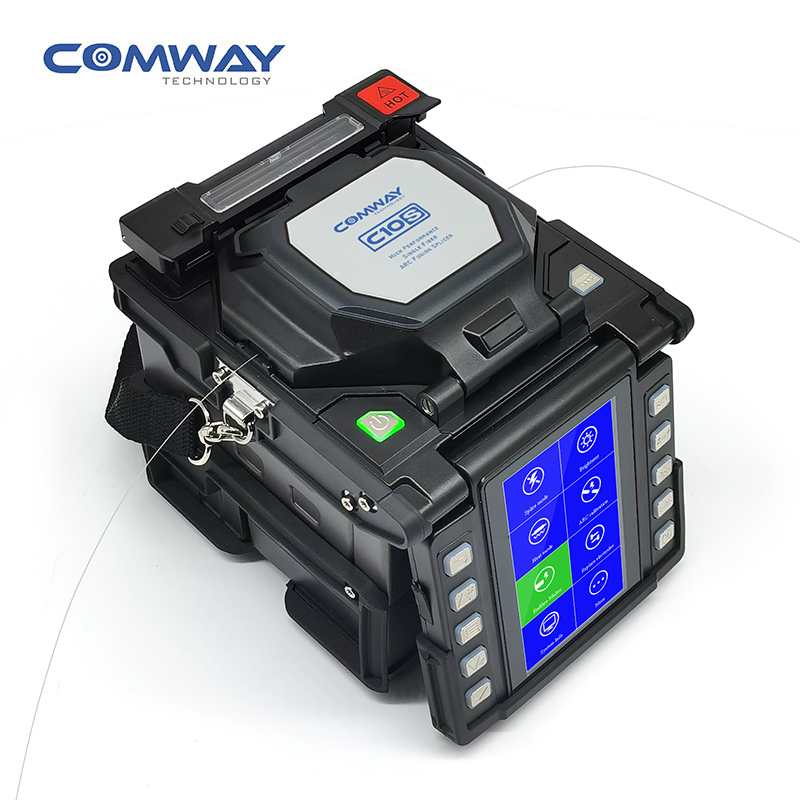

Top 2, USA COMWAY C10S fusion splicer   price usd4500/set

COMWAY C10S  is a direct core monitoring fusion splicer for ultra fast splicing in every environment.

COMWAY C10S FUSION SPLICER

Features :

1. High precision CORE alignment machine.
2. Splicing time 5 sec., heating time 30 sec.
3. Fast boot technology
4. More than 500 times splicing and heating
5. Resist dust, rain, wind, and shock
6. Fiber type identify, AUTO splicing mode
7. Easy to change electrodes and fiber holder
8. High speed USB, maintenance via the Internet



Specification:



Size & Weight

D156xW135xH149(mm), 2.0kg (2.5kg with battery)

Fiber alignment

High Precision CORE Alignment

Fiber type

Splice mode

SM(ITU-TG.652), EB(ITU-TG.654),MM(ITU-T G.651), DS(ITU-T G.653), NZ/NZDS(ITU-T G.655), BI(ITU-T G.657)

Single fiber

Fiber diameter

Cladding diameter 80^150um, coating 100~3000um

Cleave length

Splicing programs

250pm cladding diameter 8~16mm, over 250pm cladding diameter 16mm

Max. 200

Splicing time

5 sec. [SM Fast] program, 10 sec. [SM G652] program

Heating programs

Max. 30

Heating time

Splice protector

Typical 15sec. (Adjustable)

10~60mm

Splice image capture

Max. 800

Splice data storage

Max. 20000

Splice loss

SM:0.02dB, MM:0.01dB, DS:0.04dB, NZ/NZDS:0.04dB, BI:0.02dB

Return loss

»60dB

Loss estimation

Provided

Operation condition

Altitude 0~5000m, Humidity 0~95%,Temperature -2O~+5O°C, Wind velocity up to 15m/s

Storage condition

Humidity 0~95%, Temperature -40~+80°C (Battery -20~+40°C)

Tension

1.96~2.25N

Fiber view

Two 300x cameras observation, 4.3 inch high-light color screen

Fiber magnification

300x for X or Y single axis view, 750x for both X&Y dual axis view

Port

High speed USB

Electrodes life

5000 arc discharges

Power supply

AC100-240V, 50/60Hz

Battery parameters

8400mAh High capacity battery, more than 500 times splicing and heating







Top 3, Sumitomo type-82c+ splicing machine  price usd5299/set

SUMITOMO TYPE-82C+ FUSION SPLICER

Features

  • Ultra fast splicing: 5 sec.
  • Ultra fast heating: 9 sec.
  • Automatic fiber identification (SMF, MMF, DSF, NZDSF, BIF, other).
  • Automatic arc calibration.
  • G.657 fiber auto-splice function.
  • Supports bi-directional splicing operation.
  • Dust-resistant, water-resistant and shock-proof.
  • Compact & lightweight (only 1.9 kg).
  • Touch-screen operation.
  • Upgrades software via internet.
  • Remote interactive maintenance via internet.
  • Equipped with onboard user training video.



Top 4, Fujikura 88s+ fusion splicer   price usd5299/set

FUJIKURA 88S+ FUSION SPLICER

Fujikura 88S+ is a fusion splicer with a high precision lenses, which provide an accurate core-to-core alignment. Also, these lenses allow the splicer to discriminate between fiber types.

The Fujikura  88S+ splicing machine possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The tool finds the true core position and achieves the consistent lower splice loss. The device features fiber discrimination function: it automatically identifies the optimum arc discharge parameters in accordance with the fiber type.

Fujikura 90S+ has faster automated features that reduce installation time. The user can complete the entire splicing process without touching the tool and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out.

Features
Splicing time: 7-9 sec (SM FAST mode).
Heat time: 13-15 sec (for 60 mm sleeves).
Core alignment technology.
Advanced image processing technology.
Fiber discrimination function.
The faster automated features.
Time for opening wind protector is 80% lower comparing to the Fujikura 80S.
Time for placing fiber into heater is 50% lower comparing to the Fujikura 80S.
Easy fiber protection sleeve positioning.
The lid of the carrying case may be used as a work table.
Plenty of space in the carrying case. There are two drawers for storage, and the work tray can be divided into two separate places.
The sheath clamp is compatible with loose tube fiber.
Wireless data connectivity allows automatic cleaver blade rotation when the splicer judges the blade is worn.
The tool can connect two cleavers simultaneously.
Blade life management: the device displays the remaining blade life, informs about blade height and position change, and when new blade is required.
Operation manual is installed into the splicer.
Battery life increased up to 500 recharge cycles.
Increased electrode lifetime – up to 5000 splicing cycles with one set.
5-inch color TFT touch screen display.



Top 5, TEKCN TC-400i Ftth Fusion Splicer price usd870/set

fusion splicer tekcn tc-400i



tc-400 fusion splicer
 fusion splicer



Speicifications

Fiber alignment

core to core alignment

Applicable fibers

Single/SMF(G.652/657), MMF(G.651), DSF (G.653), NZDSF (G.655), BI(G,657)

Cladding dia.

80-150pm /100-1000pm

Sheath dia.

8-16mm

Cleave length

5mm to 16mm with sheath clamp

Splice mode

Total 100 modes, supports self-defined mode and parameter

Typical splice time

7 sec. SM FAST

Typical splice loss

0.02dB(SM), 0.01dB (MM), 0.04dB (DSF) ,0.04dB (NZDS)and 0.02dB(BI)

Return loss

»60dB

Heating mode

Max. 20

Heating time

9 sec.

Applicable protection sleeve

10~60mm

Splice result storage

Last 20,000 splices

Splice image storage

Max.800

Viewing methods

2 axis CMOS camera with 4.73u HD color capacitive touchscreen

Magnification

Supports X/Yor both X and Y simultaneously, maximum up to 760X magnification

Port

MicroSD and USB port for software upgrade / data management

Electrode life

Typical 5000 splices

Battery compacity

4000mAh battery, more than 240 times splicing and heating; Standard charging time 3 hours (up to 80%electric quantity in 2 hours)

Power supply

AC100-240V,50/60Hz

Tension test

2N

Operating condition

Altitude : Oto 5,000m above sea level, Wind : 15m/sec Temperature : -10 to 50deg C, Humidity :0to 95%RH

Storage condition

Humidity: 0 to 95%RH Temperature: -10to 80deg C(Battery: -10 to 40deg C)

Size/weight

133Wx 144Dx 133H (mm)/1.5kg (1.8kg including battery)
